FIRE EQUIPMENT MANUFACTURING

Burner Fire Control invests in evolving technology, industry certifications, training programs, workforce, and facilities to develop, design, and manufacture the top lines of fire protection equipment available.

We combine customized offshore & land fire and safety equipment, engineering, repair services, reconditioning, recertification, spare parts procurement, training, and technical support to produce higher quality, longer lasting, and more efficient equipment resulting in less downtime, better performance, and fewer replacements.

Manufactured Systems:  Large Dry Chemical and Foam Skid Mounted Units

Large Dry Chemical and Foam equipment manufactured by Burner Fire Control is designed, fabricated, and assembled with premium components and tested to offshore standards resulting in a best of breed fleet that can be customized to meet requirements for enhanced fire protection arrangements, offshore deck systems, and strategically placed special hazard fire protection projects.

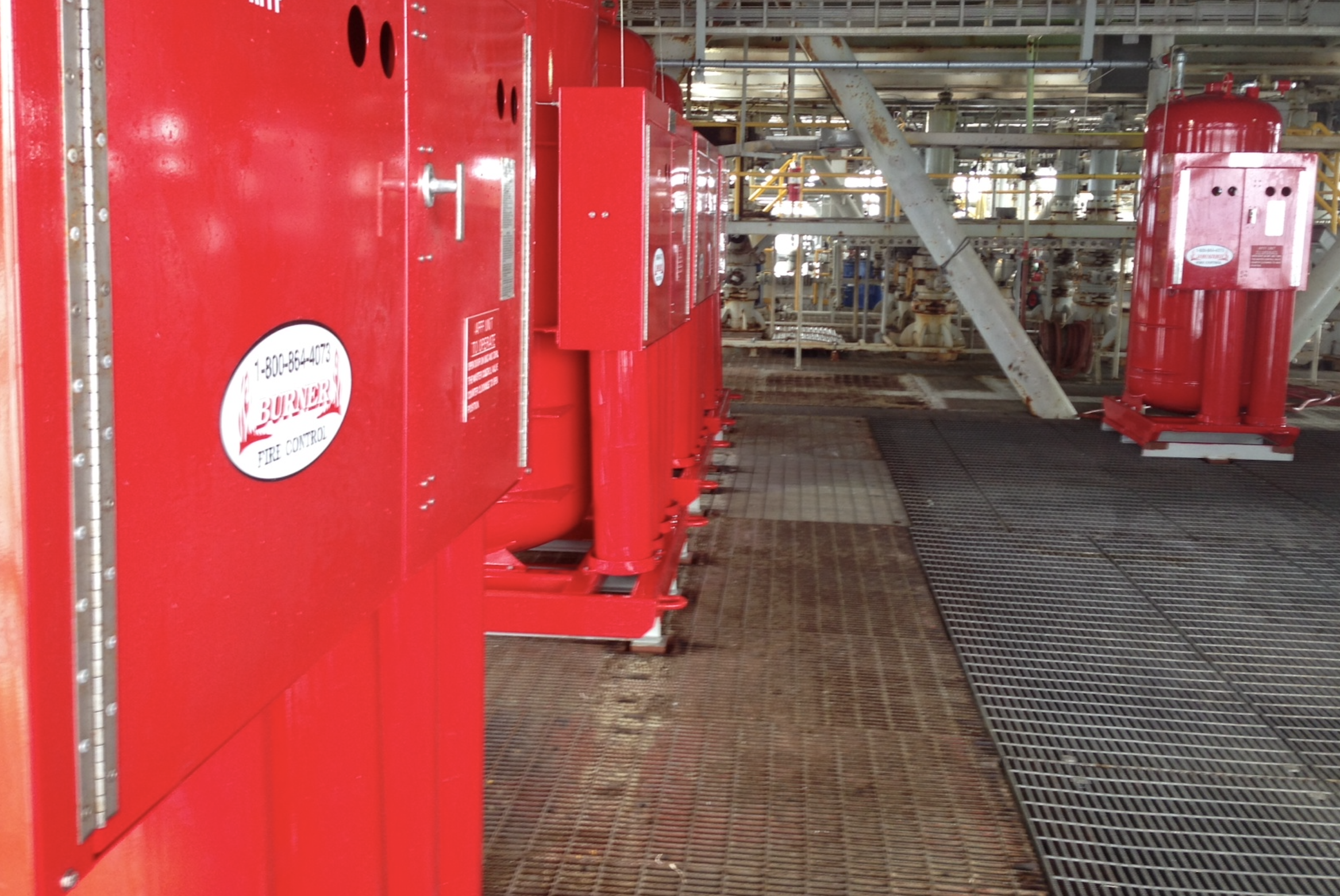

We complete this offering with comprehensive training programs and knowledge transfer to ensure maximization of customer investment.  Equipment is designed and commissioned to meet marine compliance standards and recommended practices from ABS and DNV for MOUs – Mobile Offshore Units, MODUs – Mobile Offshore Drilling Units, and offshore installations.  This addresses updated unique applications and new RPs for FPSOs – Floating Production, Storage and Offloading units to includes industrial facility areas to include cargo areas and machine spaces.

Burner Fire Control serves an OEM to produce fire apparatus integrated systems, piped systems, custom vehicle slide-in units, and self contained hand hose line units for the leading fire equipment companies in the world.  We have a fleet of pre-enginneered units that are built-to-order with the ability for stage build customization at rapid delivery times that other manufacturers cannot achieve.

Our fleet of standard units include the following:

Dry Chemical Skid Fire Fighting Units

(MANUFACTURED EXCLUSIVELY FOR AMEREX)

Amerex - Burner Fire Control

Dry Chemical Skid Units are designed and constructed for one-person operation and pre-pressurized ready for immediate discharge. Units incorporate a large capacity extinguisher cylinder and nitrogen back-up supply ready for instant actuation and maintain constant pressure during the discharge cycle. Chemical and pressure is sealed in the agent cylinder and is protected from moisture and contamination. The advanced expulsion system allows each hose reel to obtain chemical through independent discharge tubes affording a constant discharge rate on demand. A plurality of discharge tubes individually controlled allows for optional installations and isolated discharges when needed. With individual manually controlled discharge valves, either hose reel can be actuated without charging the hose reel not in use. Hose reels located in remote locations can be actuated independent of other remote reels and the remaining reels on the skid unit. All Units can accommodate manual operation or configured for automatic discharge. Units can be optionally completed with standard skid, piped installation or trailer mount.

AMEREX MODEL 900 350lb DRY CHEMICAL UNIT
AMEREX MODEL 901 500lb DRY CHEMICAL UNIT
AMEREX MODEL 902 1000lb DRY CHEMICAL UNIT
AMEREX MODEL 903 1500lb DRY CHEMICAL UNIT
AMEREX MODEL 904 2000lb DRY CHEMICAL UNIT
AMEREX MODEL 905 2500lb DRY CHEMICAL UNIT
AMEREX MODEL 906 3000lb DRY CHEMICAL UNIT

Twin-Agent Skid Fire Fighting Units

(MANUFACTURED EXCLUSIVELY FOR AMEREX)

Amerex - Burner Fire Control

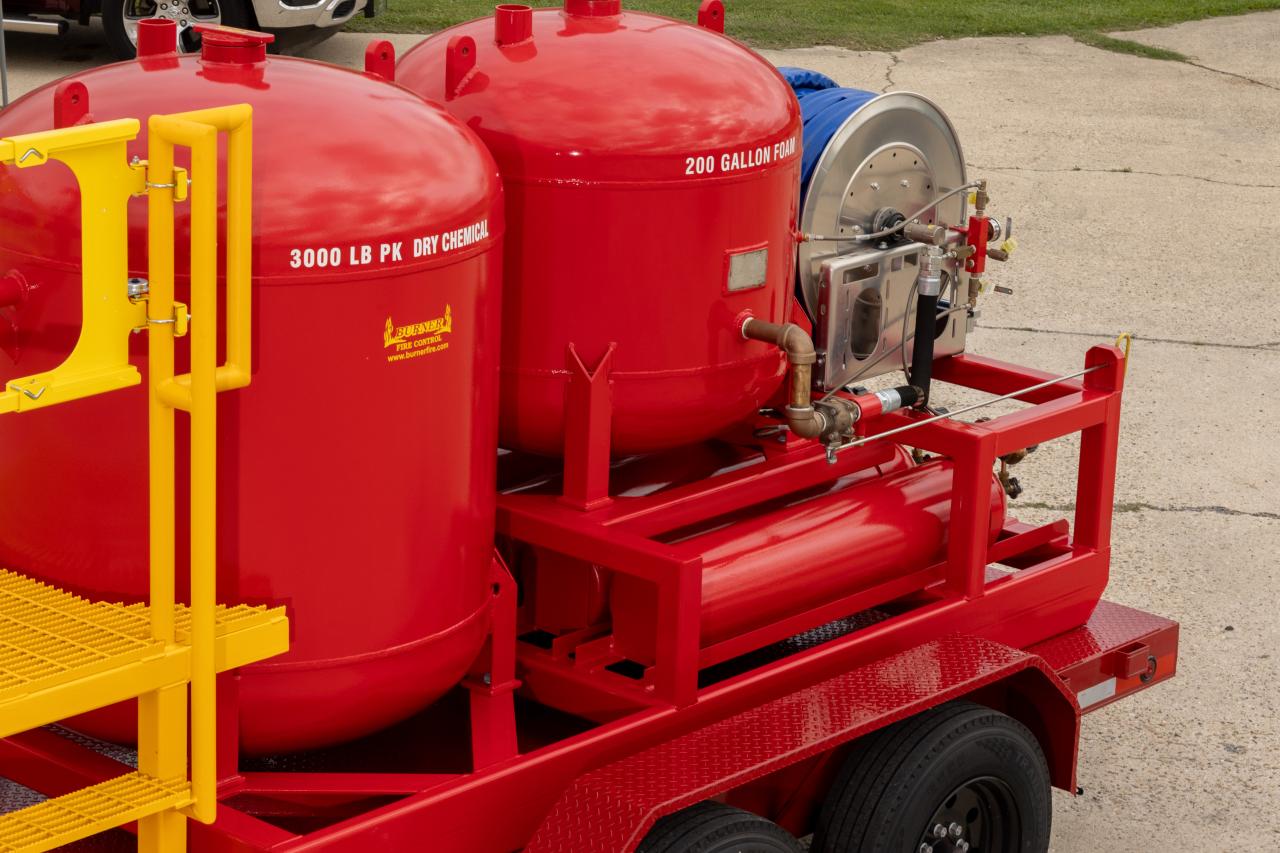

Twin Agent Skid Units provide dual agent mitigation using dry chemical with the added fire response properties of an integrated foam unit proven to be one of the most effective tools in mitigating extreme risk areas with multiple hazards. Units are designed and constructed for one-person operation and pre-pressurized ready for immediate discharge. Units incorporate dual large capacity extinguisher cylinders and nitrogen back-up supply ready for instant actuation in emergency situations. Units can accommodate manual operation or configured for automatic discharge. Units can be optionally completed with standard skid or trailer mount.

AMEREX MODEL 920 TWIN AGENT UNIT 200 DC 80 AFFF
AMEREX MODEL 921 TWIN AGENT UNIT 450 DC 100 AFFF
AMEREX MODEL 922 TWIN AGENT UNIT 450 DC 150 AFFF
AMEREX MODEL 923 TWIN AGENT UNIT 450 DC 200 AFFF
AMEREX MODEL 924 TWIN AGENT UNIT 1000 DC 150 AFFF
AMEREX MODEL 925 TWIN AGENT UNIT 3000 DC 200 AFFF

Pre-Mixed Foam Fire Fighting Stations

(MANUFACTURED EXCLUSIVELY FOR AMEREX)

Amerex - Burner Fire Control

Pre-Mixed Foam Stations are totally self-contained and require no outside water or power source. These stations address limitations experienced with traditional foam proportioners, around-the-pump systems, foam monitors, applicators, and foam concentrate storage tanks. Units are offered with LOP (Loss of Pressure) actuation system and can be configured for manual or automatic discharge.

AMEREX MODEL 940 150 gal. AFFF UNIT
AMEREX MODEL 941 150 gal. AFFF UNIT W/ HOSE REEL
AMEREX MODEL 942 300 gal. AFFF UNIT
AMEREX MODEL 943 300 gal. AFFF UNIT W/ HOSE REEL
AMEREX MODEL 944 500 gal. AFFF UNIT

Compressed Air Foam Systems (CAFS)

(MANUFACTURED EXCLUSIVELY FOR AMEREX)

Amerex - Burner Fire Control

Compressed Air Foam Skid Units are designed for single-person operation and rapid response affording the availability of high expansion foam for maximum fire fighting power in a versatile compact delivery unit. Compressed Air Foam Units are self-contained and stored-energy having the added ability to inject compressed air into the foam solution generating a powerful fire attacking and suppression solution. This foam has a exponentially more dense bubble structure than water and standard foam solutions. The viscosity allows the foam to adhere to vertical and horizontal surfaces and penetrate fires deeper before the compound is broken down allowing latent water to be more effective. Units can be optionally completed with standard skid, trailer, or vehicle mount of choice. (Mobile cart options available for select capacities)

AMEREX MODEL 961 21 gal. VERTICAL CAFS UNIT
AMEREX MODEL 962 30 gal. CAFS UNIT
AMEREX MODEL 963 30 gal. 8 WHEELED CART CAFS UNIT
AMEREX MODEL 964 60 gal. CAFS UNIT
AMEREX MODEL 965 60 gal. MILITARY STYLE CAFS UNIT
AMEREX MODEL 966 60 gal. CAFS UNIT
AMEREX MODEL 967 100 gal. CAFS UNIT
AMEREX MODEL 968 200 gal. CAFS UNIT
AMEREX MODEL 969 16 gal. CAFS UNIT



Industrial Fire Fighting Skid Units

DOWNLOAD SKID UNIT BROCHURE

For further information, please send us a message via the contact page, or call us at (800) 864-4073
